eXturn - a revolutionary industrial platform for assembly of high-pressure piping systems
The Future of Automated Nut Assembly

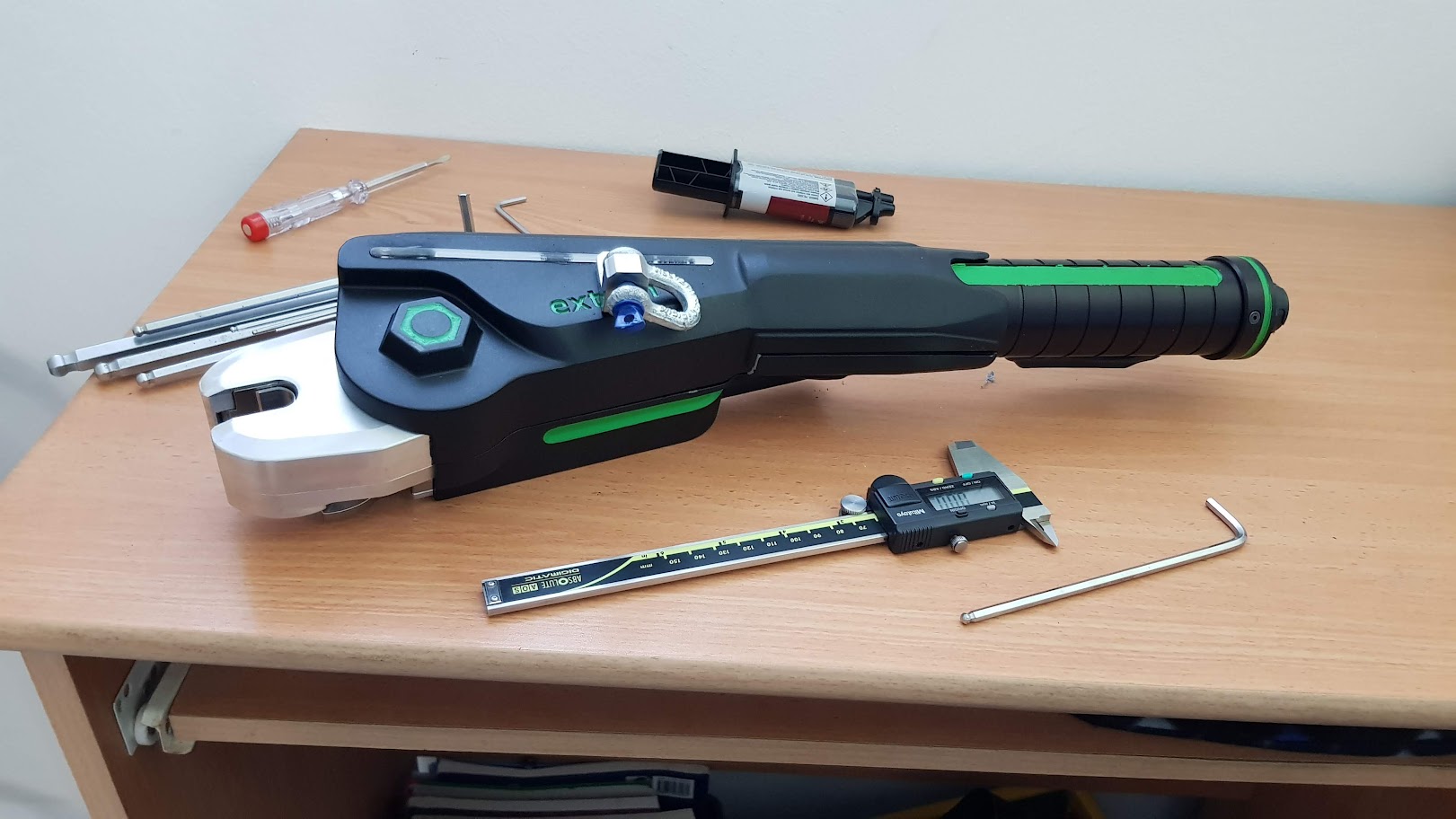

eXturn™ is the world's first intelligent open-end fastening system — a precision-engineered, dual-motor automation tool that detects, grips, tightens, angle-controls, and verifies every nut without operator fatigue or inconsistency.
Where traditional tools depend on operator skill — eXturn thinks, measures, and executes. It turns a manual, error-prone process into a precise industrial workflow.
What Makes eXturn Revolutionary
Two Motors, One Automated Motion Sequence
Motor #1 – Intelligent Gripper System
- Self-aligning gripper automatically detects and centers around nuts (10–20mm range)
- Linear guide mechanism extends/retracts for fast engagement
- Adaptive grip force — adjusts to nut dimensions and material hardness
- Compact Swiss-made BLDC motor provides micron-grade positioning control
Motor #2 – High-Torque Fastening Drive
- Ultra-high torque density Swiss BLDC motor
- Swiss planetary gear (1:6) for power efficiency
- Custom worm gear (1:37) delivering exceptional mechanical advantage
- Precise rotation under load — without vibration or impact
The "Extra Movement": Continuous Tightening in Confined Spaces
This is where eXturn stands alone.
- Grip & align
- Rotate with torque control
- Auto-release + reposition
- Continue tightening
The tool performs its own micro-repositioning, allowing continuous rotation even where full rotation is impossible — something no ratchet, impact gun, or electric wrench can do.
Precision Control: Torque + Rotation Angle
Unlike any wrench, eXturn allows digital tightening specifications:
- Torque Mode – tighten until the exact programmed torque is reached (verified by motor current + torque profile)
- Angle Mode – rotate by a precise angle (e.g., "+90° from seating point")
- Torque + Angle (sequence) – meets automotive and aerospace fastening standards

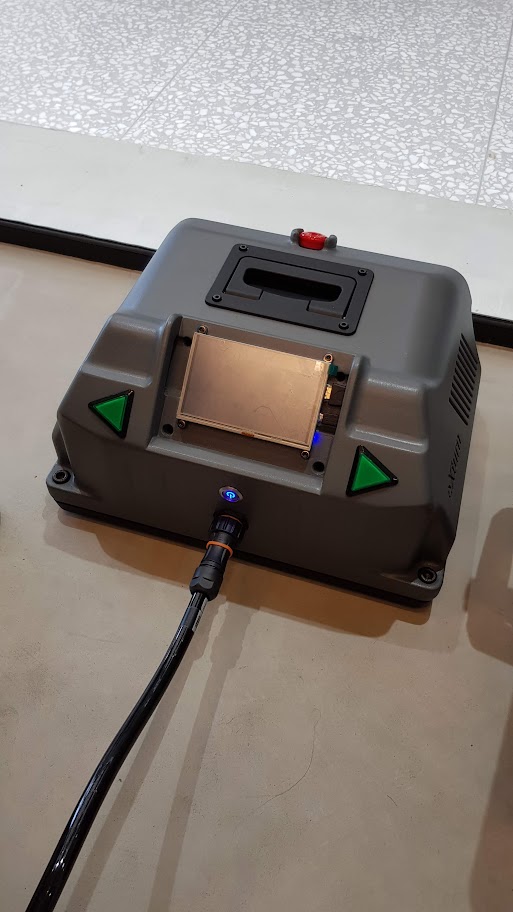

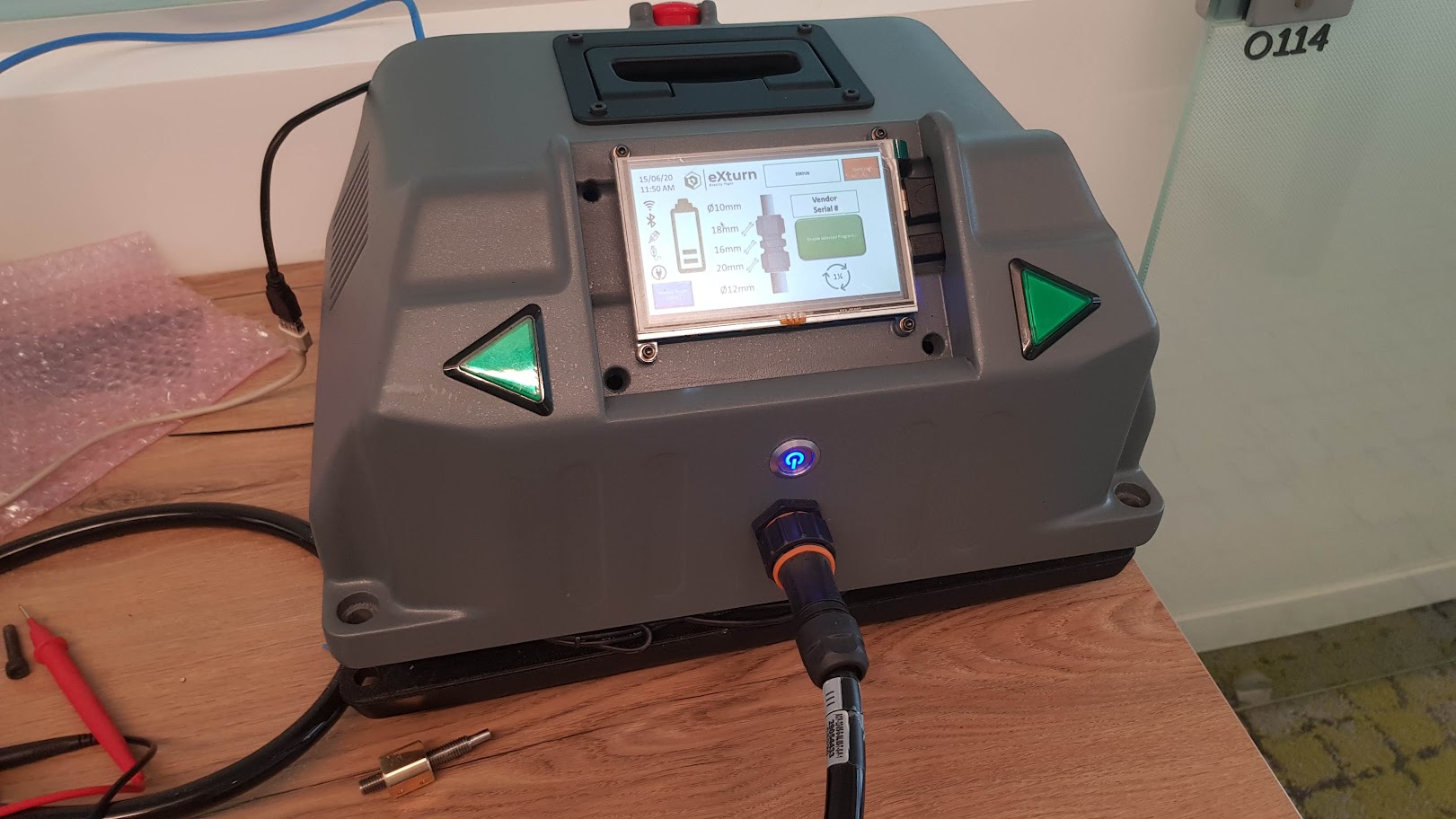

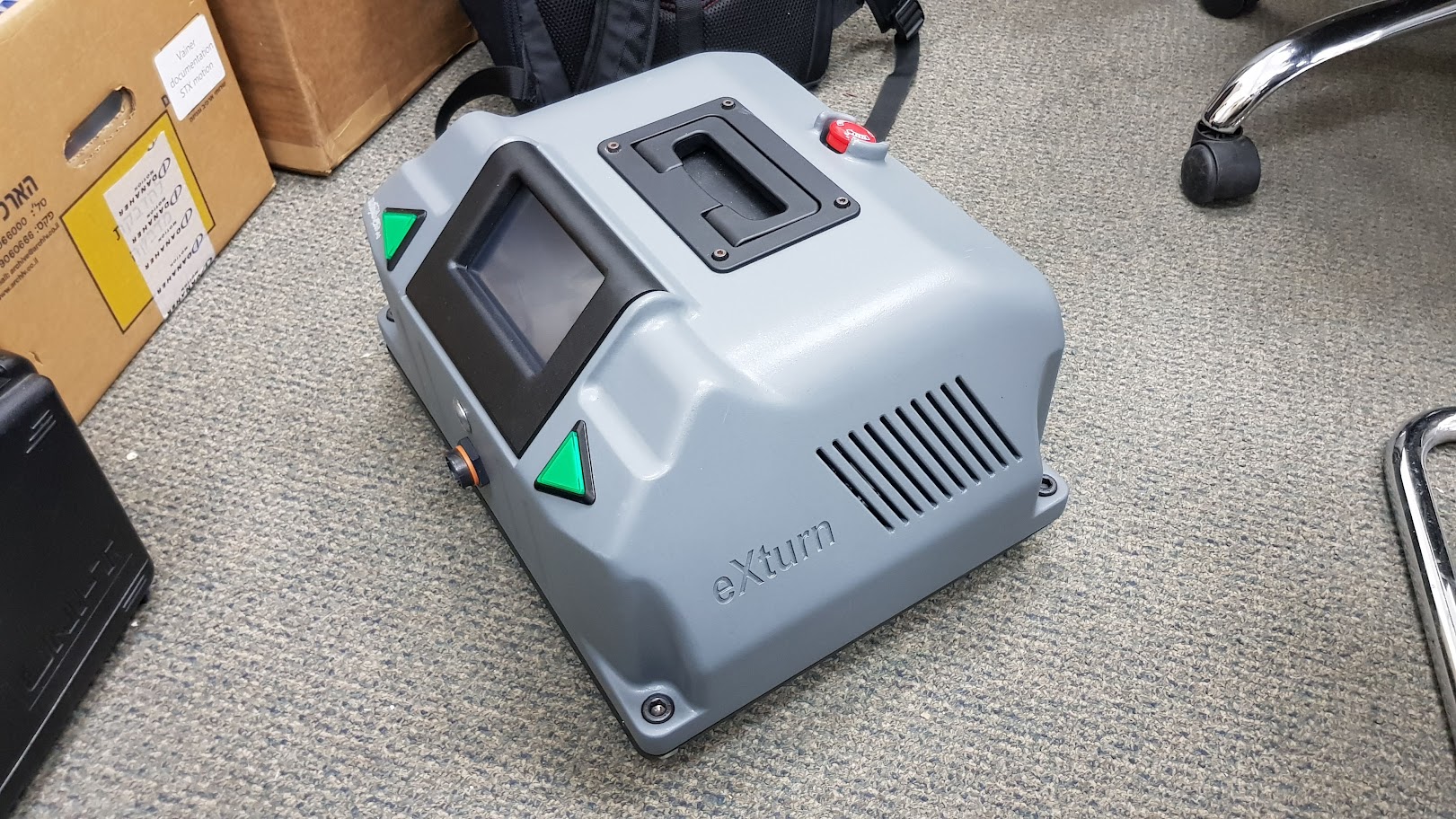

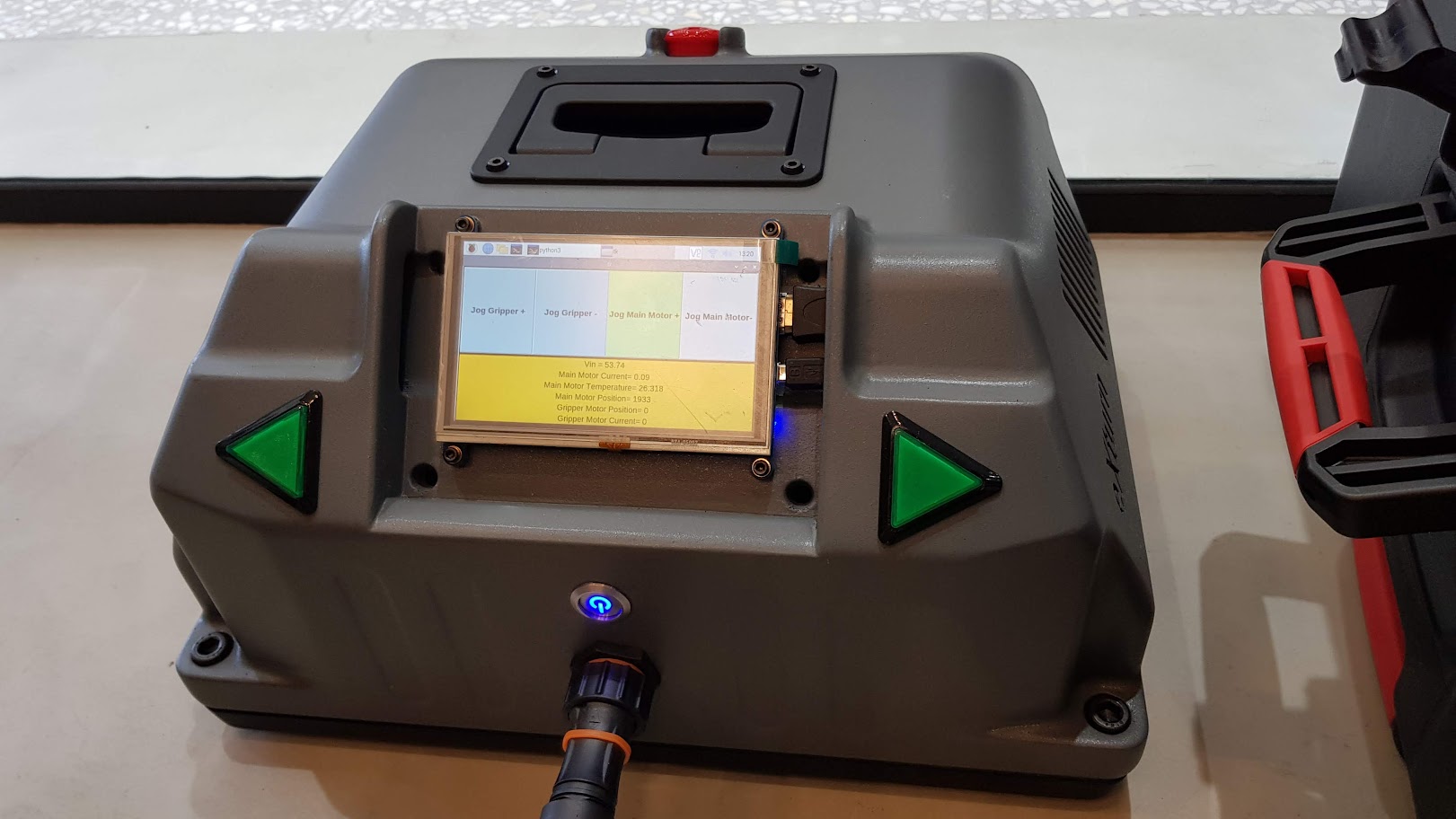

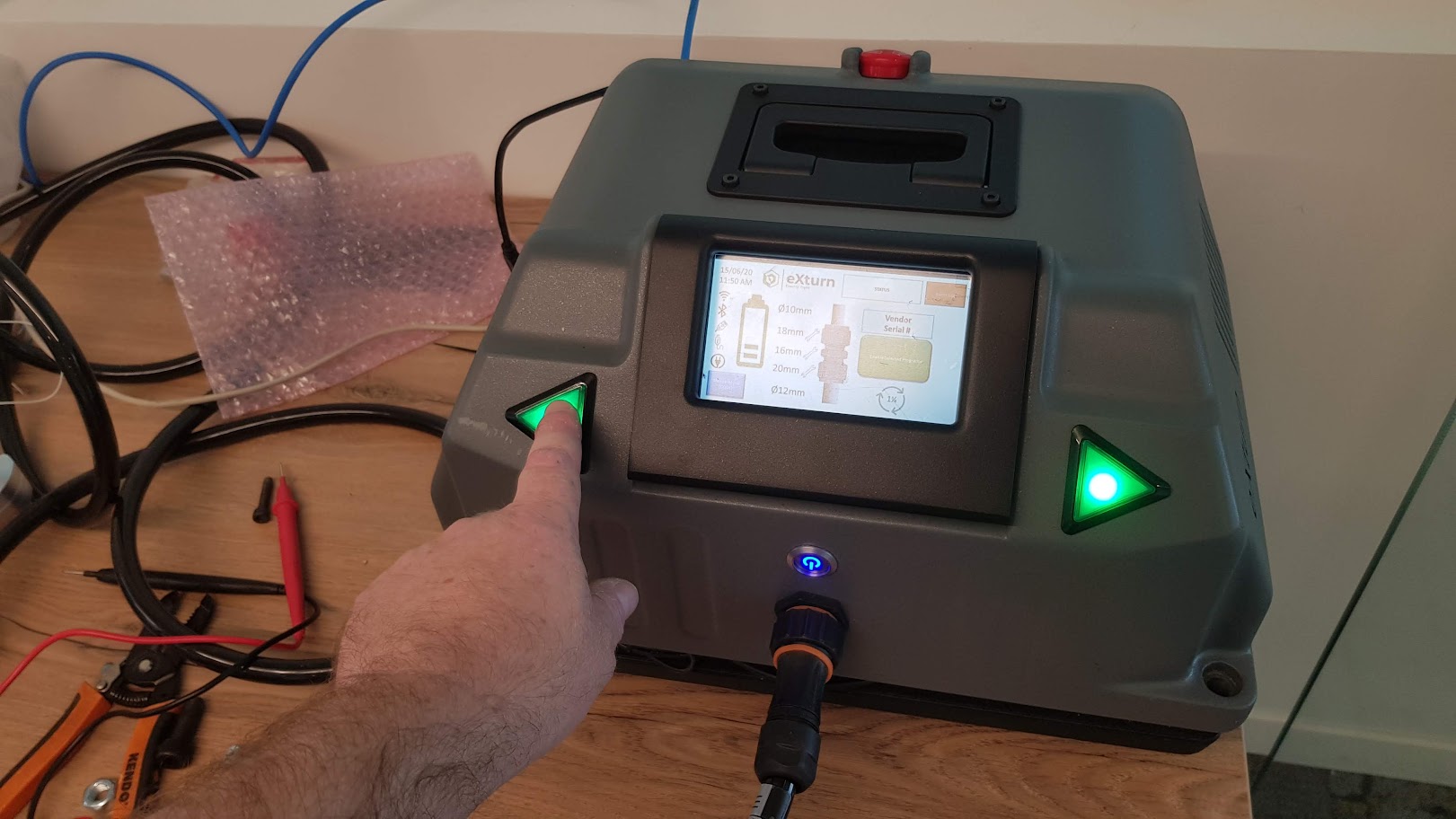

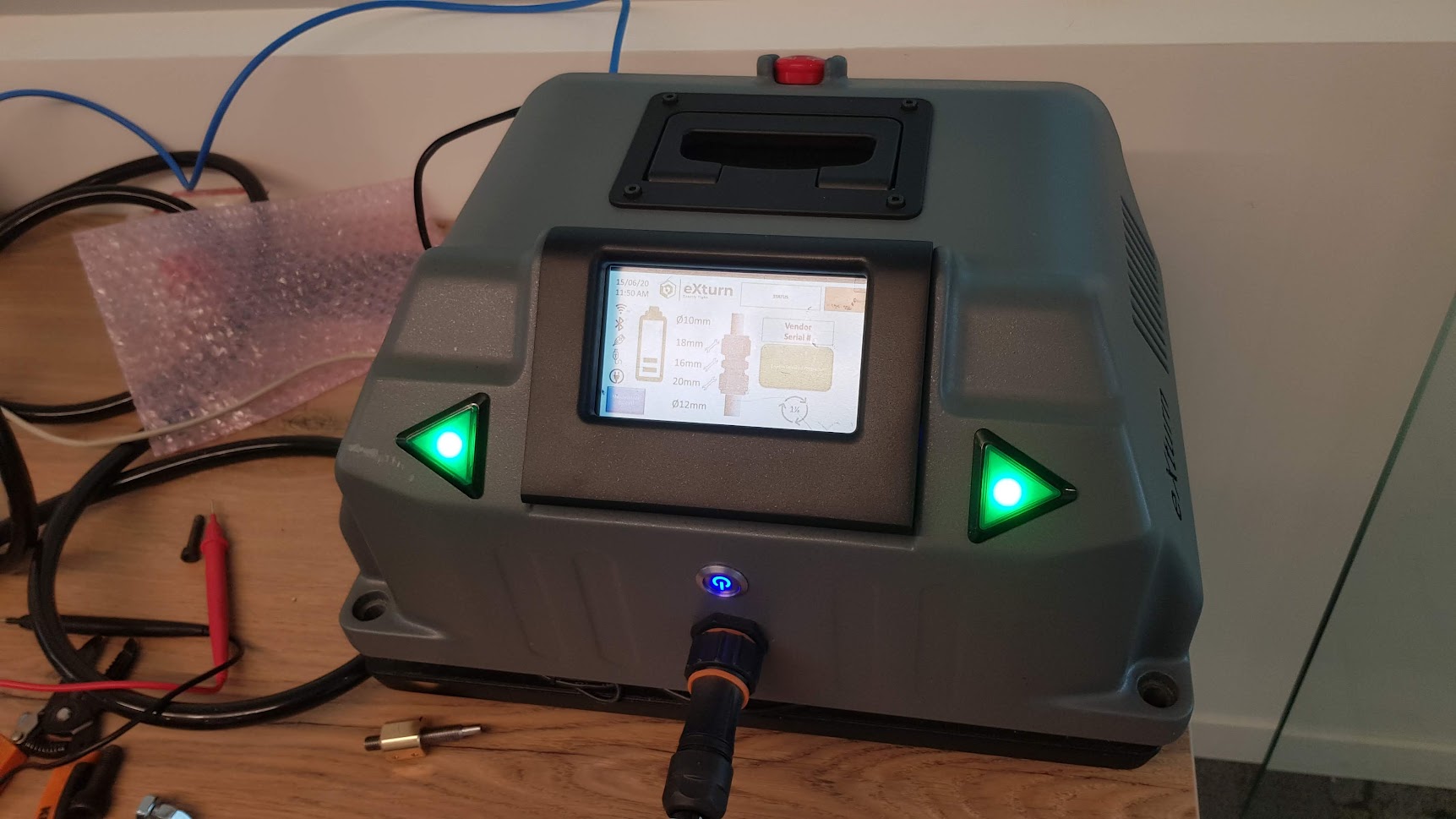

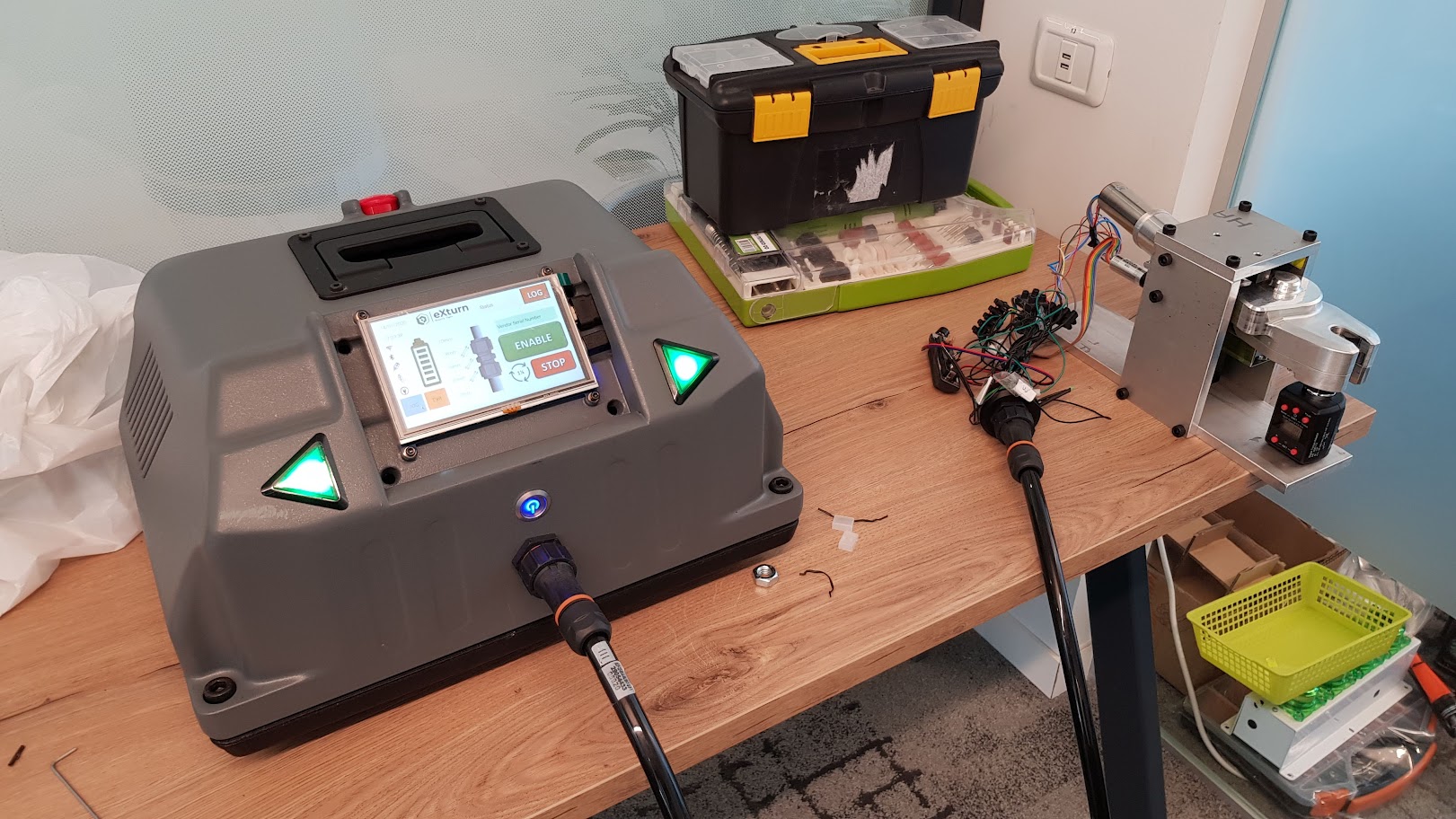

Smart Control Interface (Control Station)

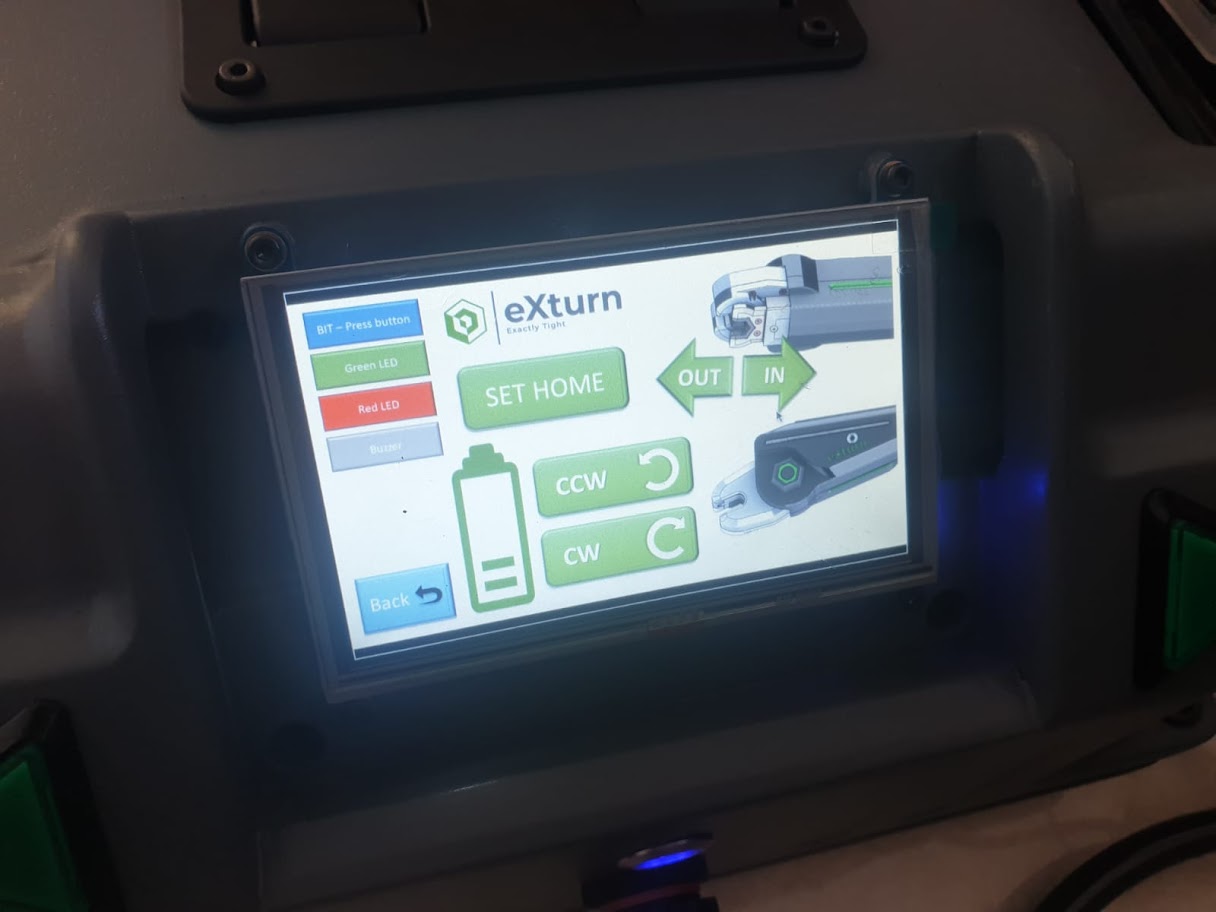

- Industrial touchscreen UI
- Jog/fine positioning for both motors
- Nut size preset selection
- Real-time feedback (current, temperature, position)
- Save multiple fastening profiles
- Emergency stop + LED status indicators
Corded or cordless — compatible with standard drill batteries or DC power.
Engineering Excellence
Premium Swiss Components
- Swiss-made BLDC motors
- Swiss planetary gears
- Custom worm gear drive
- Unique open-wrench gear geometry (patent pending)
Industrial Build Quality
- Rugged enclosure with cooling and heat management
- High-resolution display
- Robust power/data connector
- Designed for continuous duty cycles
Compact but Powerful
- Slim head fits tight spaces where sockets cannot
- Handheld or stationary mounting
- Integrates into manual cells or full automated lines
Key Industries & Applications
Automotive
- Engine, transmission, chassis, interior, wheel assembly
Electronics
- Server racks, telecom frames, device housings
Machinery & Industrial Equipment
- HVAC systems, construction machinery, production machinery
Aerospace & Defense
- Safety-critical torque + angle applications
Why eXturn Changes the Game
| Benefit | Impact |
|---|---|
| Zero human error | No cross-threading or over-tightening |
| Consistent torque & angle | Every fastener, every cycle |
| Faster throughput | 2–3 sec per nut, fully repeatable |
| No fatigue | Operator supervises — tool does the work |
| Fits anywhere | Works in confined/access-restricted spaces |
| Flexible integration | Bench, handheld, or automated line |
eXturn doesn't just fasten. It verifies, documents, and proves the fastener was installed correctly.

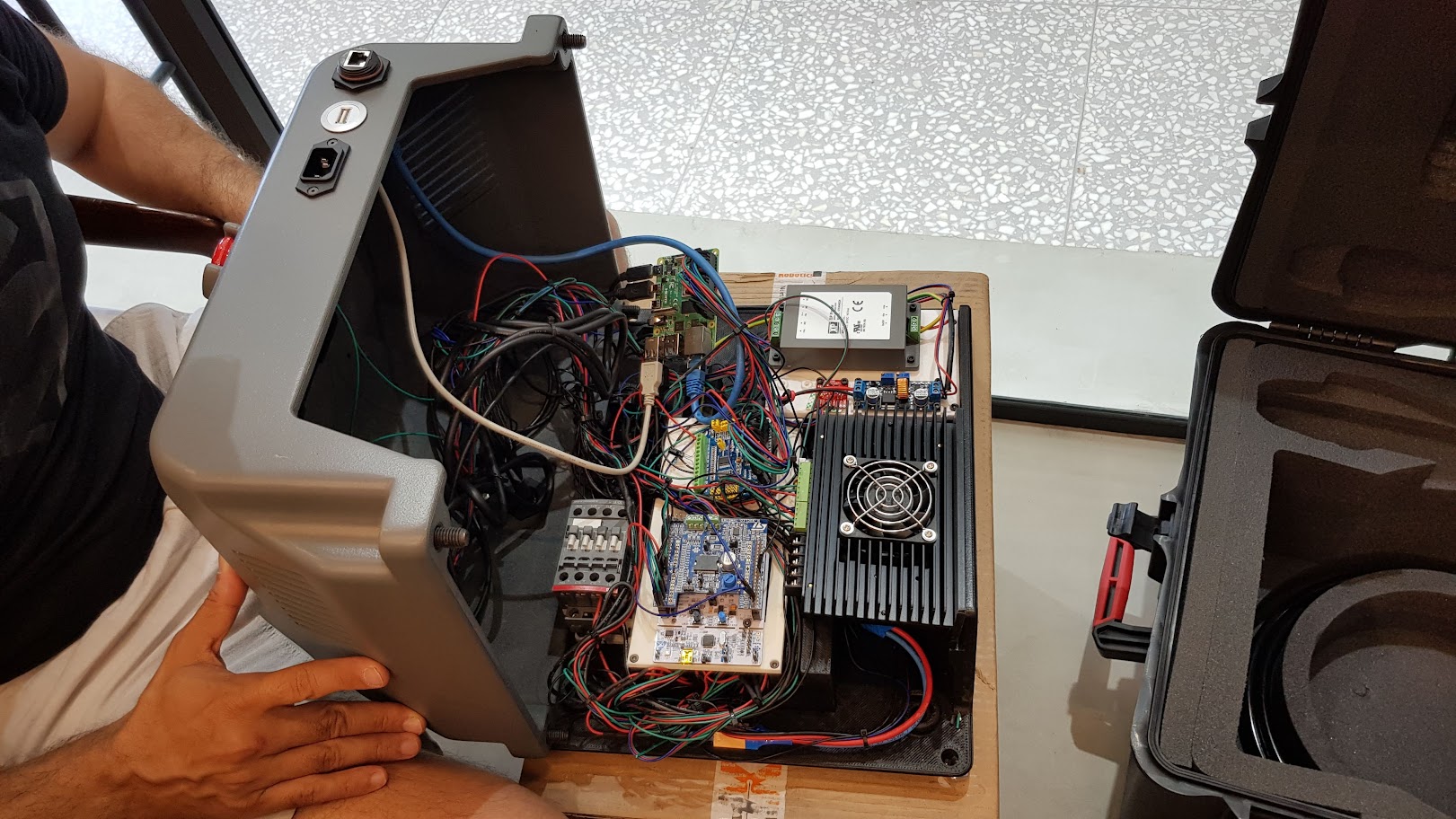

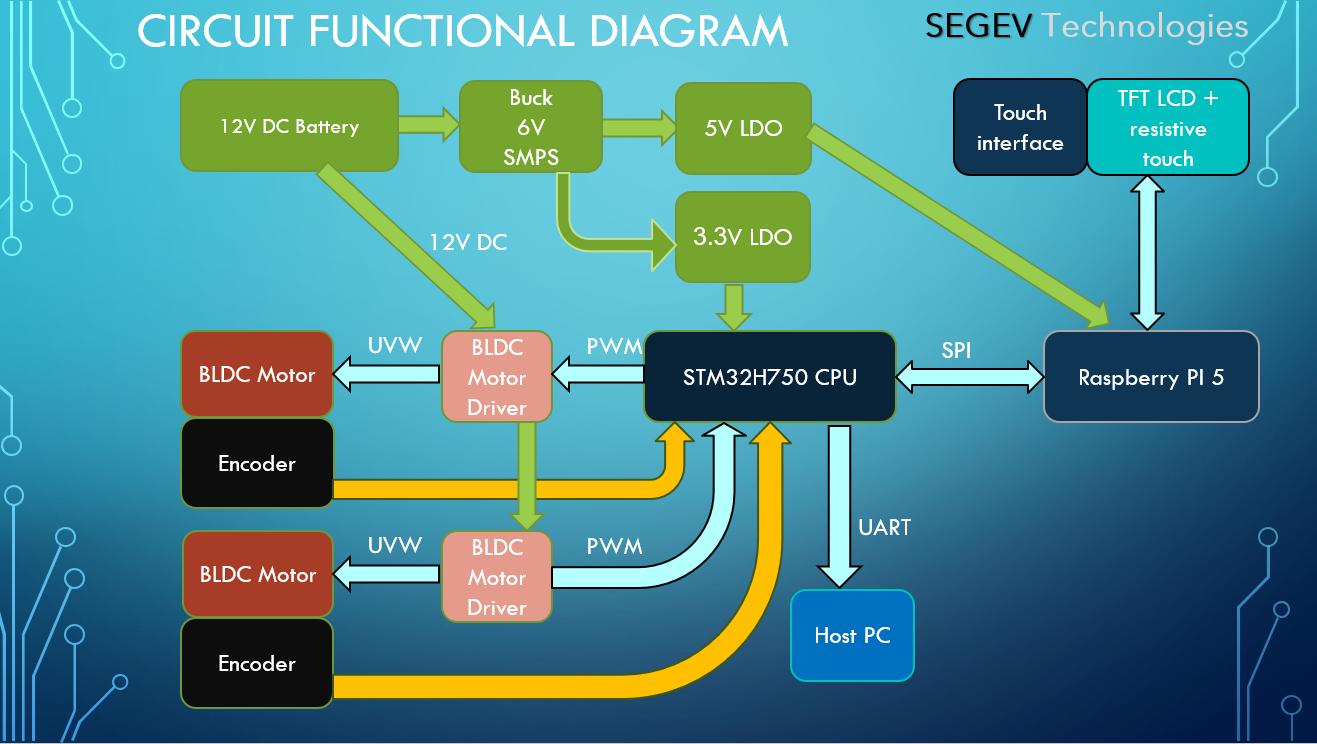

Segev Technologies created the control system, electronics and software for eXturn.
We implemented our proprietary BLDC controllers to implement the drive section of the project.

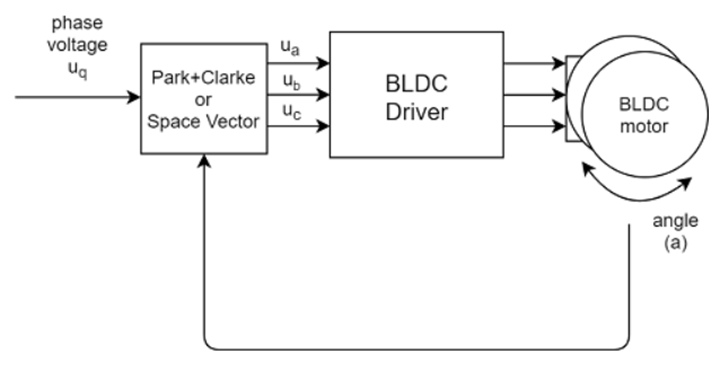

Field Oriented Control for BLDC motors
Improved torque response.
Torque control at low frequencies and low speed.
Dynamic speed accuracy.
Reduction in size of motor, cost and power consumption.
Four quadrant operation.
Short-term overload capability.
